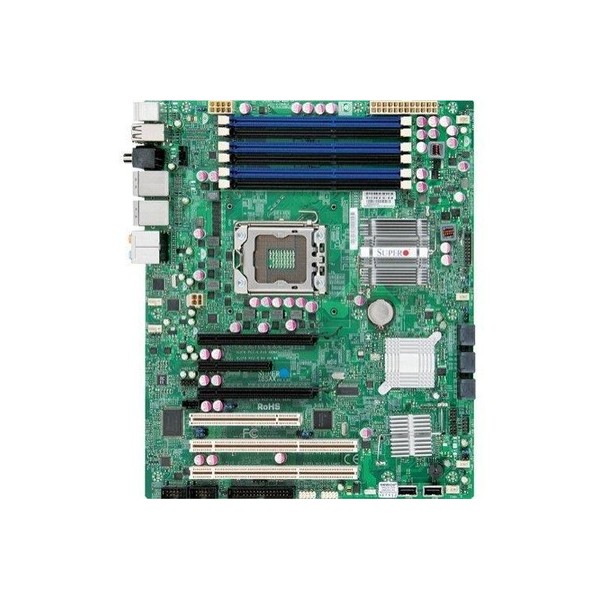

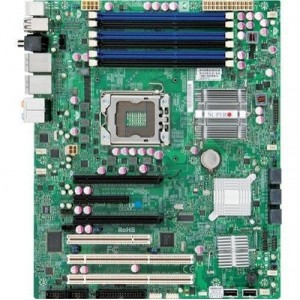

Supermicro Intel 1366 X8SAX

MPN

MPN: X8SAX

Key Features

Dimensions: The format is the shape and physical dimensions of the motherboard. It therefore indicates the types of enclosures and accessories with which the system is compatible motherboard, and its organization physique.ATX
Chipset: The chipset is the heart of the computer and the transit point through which all data transfers. It determines how fast components such as processor, memory, keyboard and various plug-in communicate with each other. It is possible that some chipsets do not support the components you want to equip your computer. Also, before selecting a chipset, determine the features you want to install on your computer and check if the chipset supports the X58 Express charge.Intel
Compatible Processors: Intel Core i7 Extreme Edition, Intel Core i7
Video Interface: The interface shows the video ports available to install graphics cards on your motherboard. If you associate your motherboard to graphics or video, make sure that these components use the same interface.PCI Express
Storage Controller Type: SATA II 6

Specifications

Expansion Slots: The PCI bus has replaced the ISA bus as a bus type standard. Unlike busISA, they enable dynamic configuration of devices. When a system is booted, the BIOS and the PCI system BIOS interact and negotiate the resources that the PCI card needs. This allows the PCI bus to provide a detailed description of all devices connected to it. .
N-PCI Express is a new version of the PCI bus based on the communication standards and existing PCI programming. Based on serial communication much faster, this bus is now mainly supported by Intel nThe speeds reached by PCI-Express bus that will replace all existing internal buses, including AGP and PCI.
N PCI-X is an extension to the PCI interface developed by IBM, HP and Compaq. This extension allows for data transfer rates higher (up to 1 GB per second with a 64-bit bus clocked at 133 MHz). PCI-X devices are perfectly compatible with older PCI versions and vice versa, but they can not run faster than is possible the chipset or device.
N AGP (Accelerated Graphics Port) is a channel point to point high speed for connecting one device to the motherboard of the computer. AGP is considered by many as a type of bus, even if it fails to connect multiple devices. Some modern motherboardsare equipped with multiple PCI slots AGP indépendants.1
1 PCI-Express x4
2 PCI-Express x16
2 PCI-X
Support RAID: SATA RAID 0
SATA RAID 1
SATA RAID 5
SATA RAID 1 +0

Processor

Chipset Family: Intel

Memory

Memory Type: One of the key components connected to your motherboard is the main memory of your system. A motherboard is used primarily with three types of memory (or RAM) to: DDR / SDRAM, RDRAM and SDRAM.

DDR
The DDR memory (Double Data Rate) RAM has a processing speed twice as fast as standard SDRAM memory. DDR RAM are faster (and probably more expensive) than their non-DDR.

RDRAM
The RDRAM memory provides a performance two times higher than the SDRAM memory and a data transfer rate higher. This is an upscale version of the RAM.

SDRAM
Alternative fastest and high performance of other types of RAM. The "S" stands for "synchronous" (synchronized), because this memory is based on a new technology that sends data in bursts at specified intervals .. DDR3 SDRAM
Number of Memory Slots: 6 DIMM 240-pin
RAM speed supported: 800 MHz
1066 MHz
1333 MHz

Various

UPC: 43201513
Product #: 81500937
